HW2000 Telescopic Loader

Factory Direct

Training on Arrival

One-year warranty

Rated Load: 2000Kg
Bucket Capacity: 0.65m³
Rated Power: 65Kw

Request a Quote WhatsApp

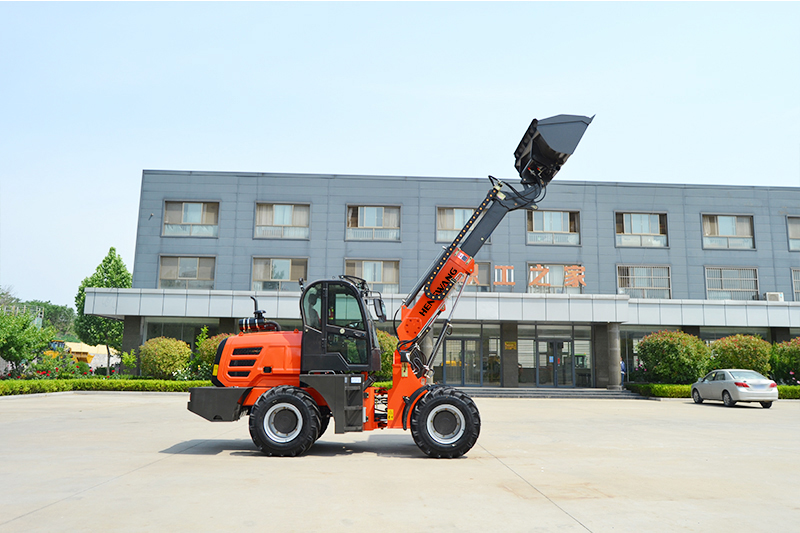

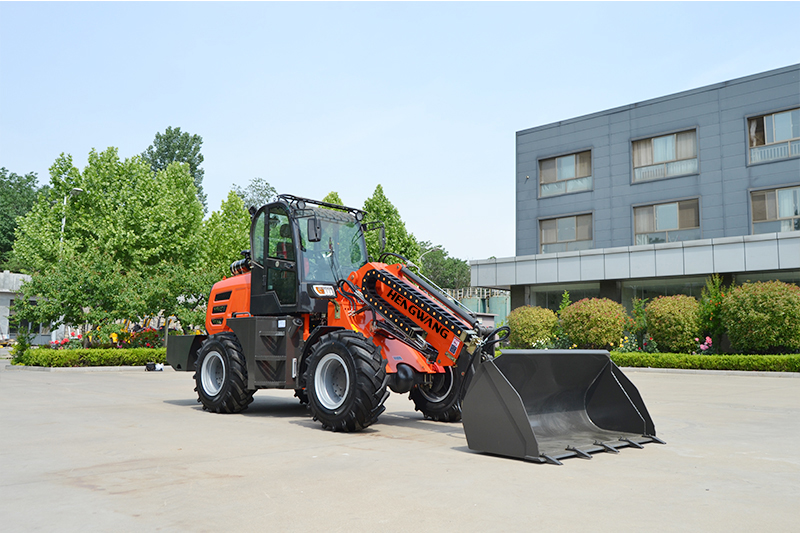

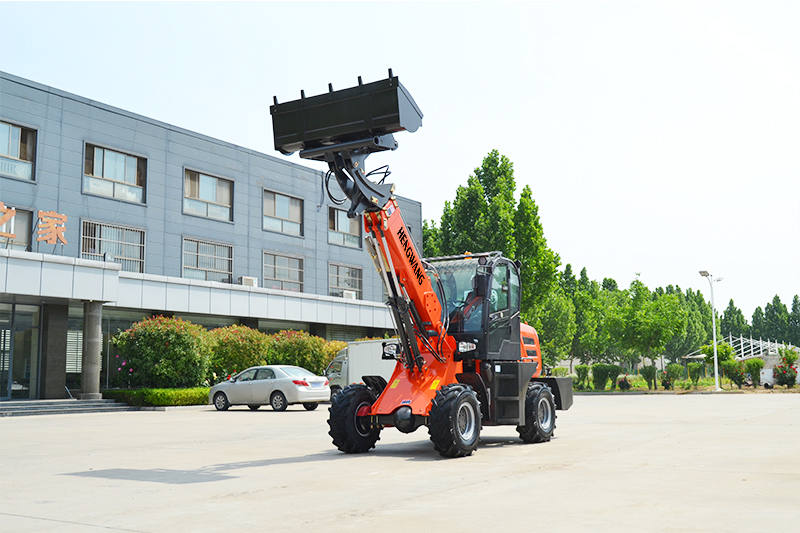

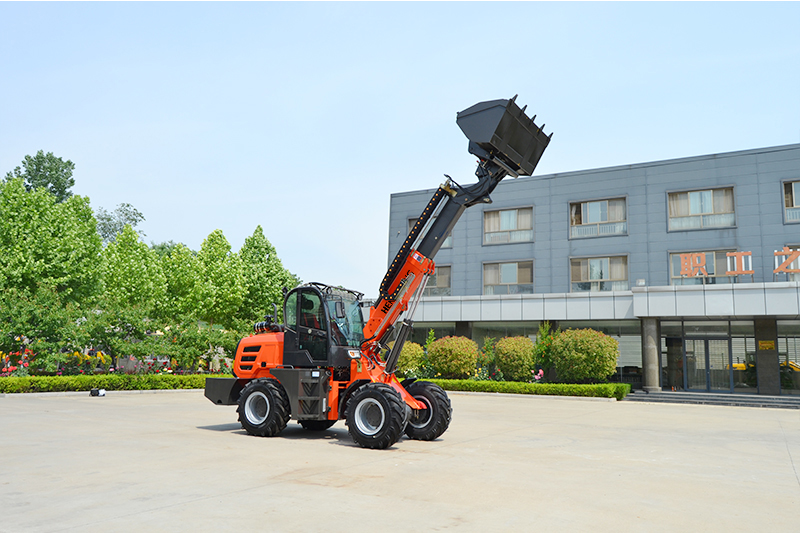

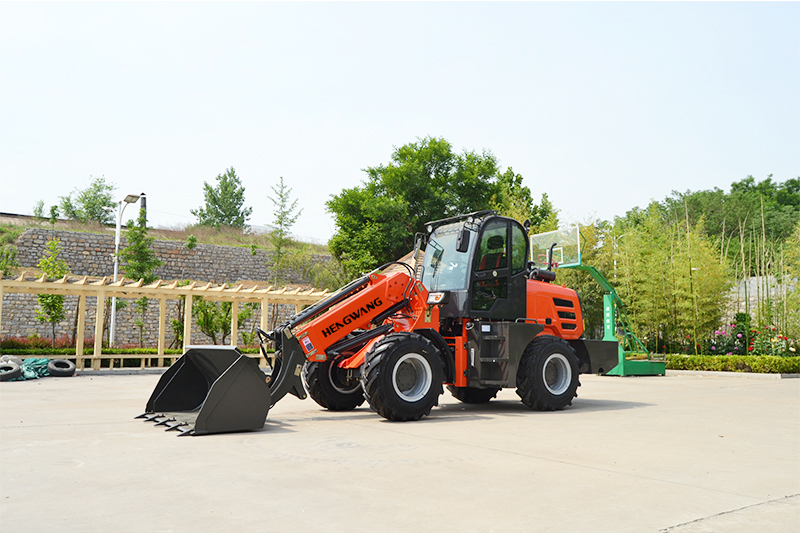

Product Pictures

Product Introduction

Telescopic boom loader HW2000 can reach 4.3m greatly increase it's working scope,(Quick change )option attachment:wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc. sweeper hundreds kinds of accessories meet the needs of different customers.

HW1500
1.Main technical specification
Bucket Capacity(m³)		0.65
Operating Weight(kg)		5800
Bucket Width(mm)		2000
Bucket type		Heavy-duty bolt on teeth
Rated Load(kg)		2000kg (including attachment or bucket)
Wheel base(mm)		2355
Track(mm)		1600
Driving Mode		Hydraulic converter, four wheel drive
Overall Dimensions(mm)		LxWxH:5900x1800x2710
Lifting to bucket hinge pin Height(mm)		4500
2.Engine Details
Model		YUNNEI Engine
Engine Type		In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
Rated Power(kw)		65
Rated Speed (rpm)		r/p.min
Optional Engine		XINCHAI / YANMAR
3.Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
4.Operating Specifications
Steering System		Articulated Frame with hydraulic power steering
Min Turning Radius(mm)		4600
Driving System		Hydraulic converter, four wheel drive
European quick coupling system
Joystick control
5.Brake System
Service Brake		Safer air assist disc brake braking system
Parking Brake		Hand operated（Disc brakes）
6.Tyre
Model:		16/70-20
Width(mm)		330
Diameter(mm)		920
Optional Model		12-16.5 / 31X15.5-15
